Application -
Power cable for construction of underground distribution grids and installations of industrial and public projects, where mechanical damages are not to be expected. Suitable for transmission and distribution of electric power at nominal voltage UO/U 0.6/1 kV.

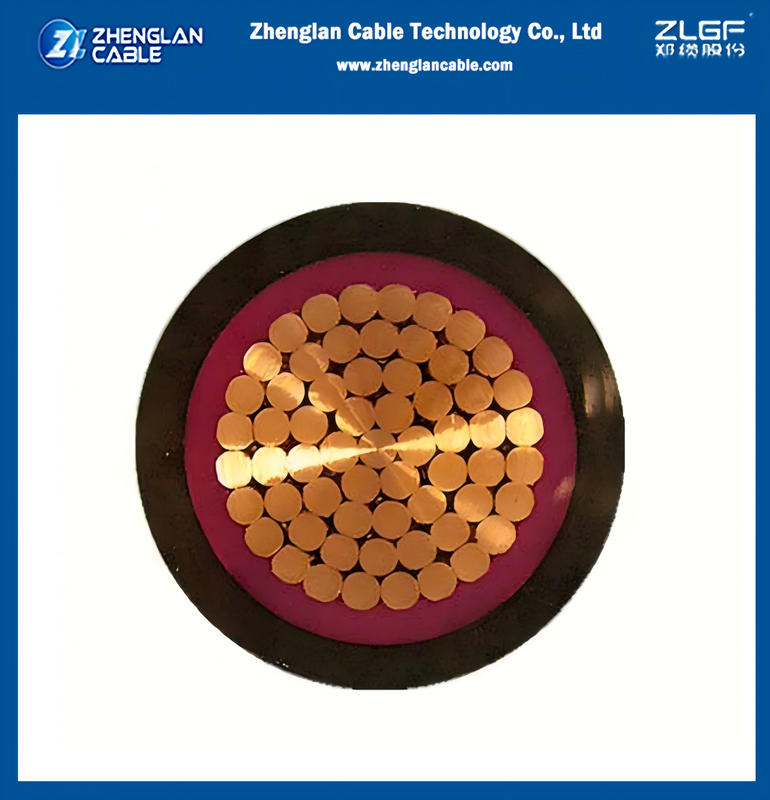

Construction -
Solid or stranded Cu wires cl.1 or cl.2 acc. to DIN VDE 0295
Insulation: PVC compound
Colour coded: to VDE 0293-308, VDE 0276 part 603 or HD 186
Core colour for 3+? conductor, J-type: green-yellow (?), brown, black, grey, O-type: blue (?), brown, black, grey
Inner sheath: filling compound
Outer sheath: PVC compound
Outer sheath colour: black
Technical data -
Power cable acc. to VDE 0276-603, 7-cores and above acc. to VDE 0276-627
Ambient temperature: -30°С - +50°С
min Temperature of laying: -5°С
max Operating temperature: +70°С
Short circuit temperature: +160°С (short circuit duration up to 5 sec.)
Nominal voltage UO/U: 0,6/1 кV
Test voltage: АС – 4 кV/50Hz, DC – 12 kV
Min. bending radius: for single core - 15 x D, for multi-core - 12 х D
Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2
